| Normal calcium carbonate | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| WS 5 | WS 6 | WS 8 | WS 10 | WS 12 | WS 15 | WS 18 | WS 20 | WS 25 | WS 40 | ||
|
Product Data |
D97 | 5 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 25 | 40 |
| D50 | 1.5 | 1.7 | 2 | 2.5 | 2.7 | 3.5 | 4.6 | 4.8 | 5.8 | 10 | |
| ≤ 2 µ % | 70 | 60 | 50 | 40 | 38 | 33 | 27 | 25 | 20 | 14 | |
| Brightness ( Ry ) | ≥ 96.5 | ≥ 96.5 | ≥ 96.5 | ≥ 96.5 | ≥ 96 | ≥ 96 | ≥ 96 | ≥ 96 | ≥ 96 | ≥ 96 | |
|
Applications |
Emulsion paints | ||||||||||
| Lacquer paints | |||||||||||
| Industrial coatings | |||||||||||
| Adhesives & sealants | |||||||||||
| Ink | |||||||||||
| paper | |||||||||||
| Coating pigments paper | |||||||||||
WS 5
Description & Applications
Normal calcium carbonate:-
Natural, very fine calcium carbonate powder
obtained from high purity,
very white lime stone with highest technology. Used in paper, Powder coating (glossy finish), water based and solvent based paints,
protective paints, printing inks, adhesives and sealants.Not for medicinal use.
Character of raw material
Physical properties
True specific gravity 2.73 g/cm³
Hardness ( mohs ) 3
HCL insoluble ≤ 0.3 %
Reflactive index 1.59
Chemical analysis
Caco3 ≥ 99.60 %
Mgo ≤ 0.1 %
Fe2o3 ≤ 0.01 %
Al2o3 ≤ 0.05 %
Sio2 ≤ 0.02 %
Cao ≥ 55.67
L.O.I 44.23 %
Product data
Physical properties
PH 9 Max (iso/787/9)
Oil absorption 23 g/100g
Bulk density 0.45 g/cm³
Moisture ≤ 0.2 %
Optical Properties
Brightness R (Y) ≥ 96.5 (C2 Deg)
Brightness CIE LAB L* ≥ 98 (D65 10 Deg)
a* ≤ 0.2 (D65 10 Deg)
b* ≤ 1.2 (D65 10 Deg)
Measured by Datacolor Elrepho

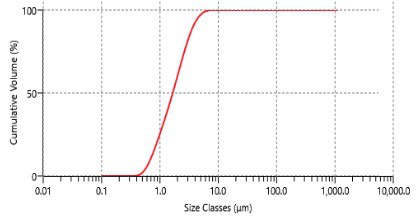

Partical size distribution
d ( 97 ) 5 µ ± 0.2 µ
d ( 50 ) 1.5 µ ± 0.2 µ
≤ 2 µ 70 % ± 2 %
sieve residue ≥ 45 µ 0.01 %
Measured by mastersizer 3000
WS 6
Description & Applications
Normal calcium carbonate:-
Natural, very fine calcium carbonate powder obtained from high purity, very white lime stone with highest technology.Used in paper, Powder coating (glossy finish), water based and solvent based paints, protective paints, printing inks, adhesives and sealants.Not for medicinal use.
Character of raw material
Physical properties
True specific gravity 2.73 g/cm³
Hardness ( mohs ) 3
HCL insoluble ≤ 0.3 %
Reflactive index 1.59
Chemical analysis
Caco3 ≥ 99.60 %
Mgo ≤ 0.1 %
Fe2o3 ≤ 0.01 %
Al2o3 ≤ 0.05 %
Sio2 ≤ 0.02 %
Cao ≥ 55.67
L.O.I 44.23 %
Product data
Physical properties
PH 9 Max (iso/787/9)
Oil absorption 22 g/100g
Bulk density 0.5 g/cm³
Moisture ≤ 0.2 %
Optical Properties
Brightness R (Y) ≥ 96.5 (C2 Deg)
Brightness CIE LAB L* ≥ 98 (D65 10 Deg)
a* ≤ 0.2 (D65 10 Deg)
b* ≤ 1.2 (D65 10 Deg)
Measured by Datacolor Elrepho
Partical size distribution
d ( 97 ) 6 µ ± 0.2 µ
d ( 50 ) 1.7 µ ± 0.2 µ
≤ 2 µ 60 % ± 2 %
sieve residue ≥ 45 µ 0.01 %
Measured by mastersizer 3000
WS 8
Description & Applications
Normal calcium carbonate:-
Natural, very fine calcium carbonate powder obtained from high purity, very white lime stone with highest technology.Used in paper, Powder coating (glossy finish), water based and solvent based paints, protective paints, printing inks, adhesives and sealants.Not for medicinal use.
Character of raw material
Physical properties
True specific gravity 2.73 g/cm³
Hardness ( mohs ) 3
HCL insoluble ≤ 0.3 %
Reflactive index 1.59
Chemical analysis
Caco3 ≥ 99.60 %
Mgo ≤ 0.1 %
Fe2o3 ≤ 0.01 %
Al2o3 ≤ 0.05 %
Sio2 ≤ 0.02 %
Cao ≥ 55.67
L.O.I 44.23 %
Product data
Physical properties
PH 9 Max (iso/787/9)
Oil absorption 21 g/100g
Bulk density 0.55 g/cm³
Moisture ≤ 0.2 %
Optical Properties
Brightness R (Y) ≥ 96.5 (C2 Deg)
Brightness CIE LAB L* ≥ 98 (D65 10 Deg)
a* ≤ 0.2 (D65 10 Deg)
b* ≤ 1.2 (D65 10 Deg)
Measured by Datacolor Elrepho

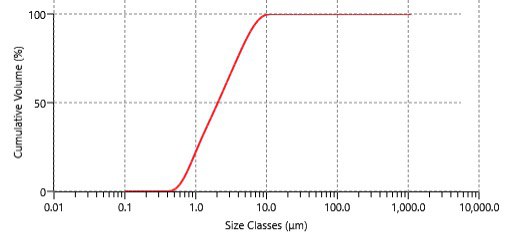

Partical size distribution
d ( 97 ) 8 µ ± 0.2 µ
d ( 50 ) 2 µ ± 0.2 µ
≤ 2 µ 50 % ± 2 %
sieve residue ≥ 45 µ 0.01 %
Measured by mastersizer 3000
WS 10
Description & Applications
Normal calcium carbonate:-
Natural, very fine calcium carbonate powder obtained from high purity, very white lime stone with highest technology.Used in paper, Powder coating (glossy finish), water based and solvent based paints, protective paints, printing inks, adhesives and sealants.Not for medicinal use.
Character of raw material
Physical properties
True specific gravity 2.73 g/cm³
Hardness ( mohs ) 3
HCL insoluble ≤ 0.3 %
Reflactive index 1.59
Chemical analysis
Caco3 ≥ 99.60 %
Mgo ≤ 0.1 %
Fe2o3 ≤ 0.01 %
Al2o3 ≤ 0.05 %
Sio2 ≤ 0.02 %
Cao ≥ 55.67
L.O.I 44.23 %
Product data
Physical properties
PH 9 Max (iso/787/9)
Oil absorption 10.5 g/100g
Bulk density 0.57 g/cm³
Moisture ≤ 0.2 %
Optical Properties
Brightness R (Y) ≥ 96.5 (C2 Deg)
Brightness CIE LAB L* ≥ 98 (D65 10 Deg)
a* ≤ 0.2 (D65 10 Deg)
b* ≤ 1.2 (D65 10 Deg)
Measured by Datacolor Elrepho
Partical size distribution
d ( 97 ) 10 µ ± 0.2 µ
d ( 50 ) 2.5 µ ± 0.2 µ
≤ 2 µ 40 % ± 2 %
sieve residue ≥ 45 µ 0.01 %
Measured by mastersizer 3000
WS 15
Description & Applications
Normal calcium carbonate:-
Natural, very fine calcium carbonate powder obtained from high purity, very white lime stone with highest technology.Used in paper, Powder coating (glossy finish), water based and solvent based paints, protective paints, printing inks, adhesives and sealants.Not for medicinal use.
Character of raw material
Physical properties
True specific gravity 2.73 g/cm³
Hardness ( mohs ) 3
HCL insoluble ≤ 0.3 %
Reflactive index 1.59
Chemical analysis
Caco3 ≥ 99.60 %
Mgo ≤ 0.1 %
Fe2o3 ≤ 0.01 %
Al2o3 ≤ 0.05 %
Sio2 ≤ 0.02 %
Cao ≥ 55.67
L.O.I 44.23 %
Product data
Physical properties
PH 9 Max (iso/787/9)
Oil absorption 18 g/100g
Bulk density 0.7 g/cm³
Moisture ≤ 0.2 %
Optical Properties
Brightness R (Y) ≥ 96 (C2 Deg)
Brightness CIE LAB L* ≥ 97.5 (D65 10 Deg)
a* ≤ 0.2 (D65 10 Deg)
b* ≤ 1.2 (D65 10 Deg)
Measured by Datacolor Elrepho

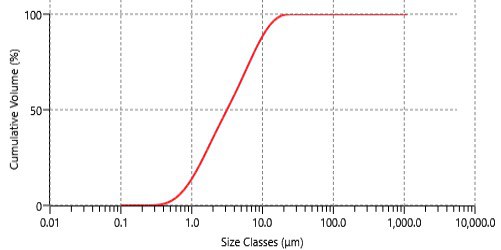

Partical size distribution
d ( 97 ) 15 µ ± 0.2 µ
d ( 50 ) 3.5 µ ± 0.2 µ
≤ 2 µ 33 % ± 2 %
sieve residue ≥ 45 µ 0.05 %
Measured by mastersizer 3000
WS 18
Description & Applications
Normal calcium carbonate:-
Natural, very fine calcium carbonate powder obtained from high purity, very white lime stone with highest technology.Used in powder coating (glossy finish), water based and solvent based paints, protective paints, printing inks, adhesives and sealants.Not for medicinal use.
Character of raw material
Physical properties
True specific gravity 2.73 g/cm³
Hardness ( mohs ) 3
HCL insoluble ≤ 0.3 %
Reflactive index 1.59
Chemical analysis
Caco3 ≥ 99.60 %
Mgo ≤ 0.1 %
Fe2o3 ≤ 0.01 %
Al2o3 ≤ 0.05 %
Sio2 ≤ 0.1 %
Cao ≥ 55.67
L.O.I 44.23 %
Product data
Physical properties
PH 9 Max (iso/787/9)
Oil absorption 17.7 g/100g
Bulk density 0.71 g/cm³
Moisture ≤ 0.2 %
Optical Properties
Brightness R (Y) ≥ 96 (C2 Deg)
Brightness CIE LAB L* ≥ 97.5 (D65 10 Deg)
a* ≤ 0.2 (D65 10 Deg)
b* ≤ 1.2 (D65 10 Deg)
Measured by Datacolor Elrepho
Partical size distribution
d ( 97 ) 18 µ ± 0.2 µ
d ( 50 ) 4.6 µ ± 0.2 µ
≤ 2 µ 27 % ± 2 %
sieve residue ≥ 45 µ 0.05 %
Measured by mastersizer 3000
WS 20
Description & Applications
Normal calcium carbonate:-
Natural, very fine calcium carbonate powder obtained from high purity, very white lime stone with highest technology. Used in powder coating (glossy finish), water based and solvent based paints, protective paints, printing inks, adhesives and sealants.
Not for medicinal use.
Character of raw material
Physical properties
True specific gravity 2.73 g/cm³
Hardness ( mohs ) 3
HCL insoluble ≤ 0.3 %
Reflactive index 1.59
Chemical analysis
Caco3 ≥ 99.60 %
Mgo ≤ 0.1 %
Fe2o3 ≤ 0.01 %
Al2o3 ≤ 0.05 %
Sio2 ≤ 0.02 %
Cao ≥ 55.67
L.O.I 44.23 %
Product data
Physical properties
PH 9 Max (iso/787/9)
Oil absorption 17.5 g/100g
Bulk density 0.73 g/cm³
Moisture ≤ 0.2 %
Optical Properties
Brightness R (Y) ≥ 96 (C2 Deg)
Brightness CIE LAB L* ≥ 97.5 (D65 10 Deg)
a* ≤ 0.2 (D65 10 Deg)
b* ≤ 1.2 (D65 10 Deg)
Measured by Datacolor Elrepho

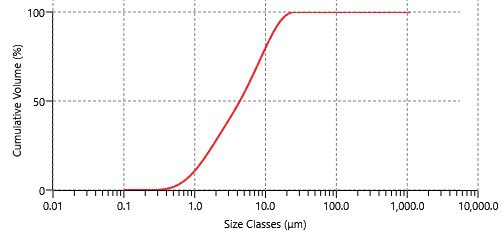

Partical size distribution
d ( 97 ) 20 µ ± 0.2 µ
d ( 50 ) 4.8 µ ± 0.2 µ
≤ 2 µ 25 % ± 2 %
sieve residue ≥ 45 µ 0.05 %
Measured by mastersizer 3000
WS 25
Description & Applications
Normal calcium carbonate:-
Natural, very fine calcium carbonate powder obtained from high purity, very white lime stone with highest technology. Used in powder coating (glossy finish), water based and solvent based paints, protective paints, printing inks, adhesives and sealants.
Not for medicinal use.
Character of raw material
Physical properties
True specific gravity 2.73 g/cm³
Hardness ( mohs ) 3
HCL insoluble ≤ 0.3 %
Reflactive index 1.59
Chemical analysis
Caco3 ≥ 99.60 %
Mgo ≤ 0.1 %
Fe2o3 ≤ 0.01 %
Al2o3 ≤ 0.05 %
Sio2 ≤ 0.02 %
Cao ≥ 55.67
L.O.I 44.23 %
Product data
Physical properties
PH 9 Max (iso/787/9)
Oil absorption 17 g/100g
Bulk density 0.78 g/cm³
Moisture ≤ 0.2 %
Optical Properties
Brightness R (Y) ≥ 96 (C2 Deg)
Brightness CIE LAB L* ≥ 97.5 (D65 10 Deg)
a* ≤ 0.2 (D65 10 Deg)
b* ≤ 1.2 (D65 10 Deg)
Measured by Datacolor Elrepho
Partical size distribution
d ( 97 ) 25 µ ± 0.2 µ
d ( 50 ) 5.8 µ ± 0.2 µ
≤ 2 µ 20 % ± 2 %
sieve residue ≥ 45 µ 0.05 %
Measured by mastersizer 3000
WS 40
Description & Applications
Normal calcium carbonate:-
Natural, very fine calcium carbonate powder obtained from high purity, very white lime stone with highest technology. Used in powder coating (glossy finish), water based and solvent based paints, protective paints, printing inks, adhesives and sealants.
Not for medicinal use.
Character of raw material
Physical properties
True specific gravity 2.73 g/cm³
Hardness ( mohs ) 3
HCL insoluble ≤ 0.3 %
Reflactive index 1.59
Chemical analysis
Caco3 ≥ 99.60 %
Mgo ≤ 0.1 %
Fe2o3 ≤ 0.01 %
Al2o3 ≤ 0.05 %
Sio2 ≤ 0.02 %
Cao ≥ 55.67
L.O.I 44.23 %
Product data
Physical properties
PH 9 Max (iso/787/9)
Oil absorption 14.5 g/100g
Bulk density 0.85 g/cm³
Moisture ≤ 0.2 %
Optical Properties
Brightness R (Y) ≥ 96 (C2 Deg)
Brightness CIE LAB L* ≥ 97.5 (D65 10 Deg)
a* ≤ 0.2 (D65 10 Deg)
b* ≤ 1.2 (D65 10 Deg)
Measured by Datacolor Elrepho
Partical size distribution
d ( 97 ) 40 µ ± 0.2 µ
d ( 50 ) 10 µ ± 0.2 µ
≤ 2 µ 14 % ± 2 %
sieve residue ≥ 45 µ 0.1 %
Measured by mastersizer 3000
WS 12
Description & Applications
Normal calcium carbonate:-
Natural, very fine calcium carbonate powder
obtained from high purity,
very white lime stone with highest technology. Used in paper, Powder coating (glossy finish), water based and solvent based paints,
protective paints, printing inks, adhesives and sealants.Not for medicinal use.
Character of raw material
Physical properties
True specific gravity 2.73 g/cm³
Hardness ( mohs ) 3
HCL insoluble ≤ 0.3 %
Reflactive index 1.59
Chemical analysis
Caco3 ≥ 99.60 %
Mgo ≤ 0.1 %
Fe2o3 ≤ 0.01 %
Al2o3 ≤ 0.05 %
Sio2 ≤ 0.02 %
Cao ≥ 55.67
L.O.I 44.23 %
Product data
Physical properties
PH 9 Max (iso/787/9)
Oil absorption 19 g/100g
Bulk density 0.59 g/cm³
Moisture ≤ 0.2 %
Optical Properties
Brightness R (Y) ≥ 96.5 (C2 Deg)
Brightness CIE LAB L* ≥ 98 (D65 10 Deg)
a* ≤ 0.2 (D65 10 Deg)
b* ≤ 1.2 (D65 10 Deg)
Measured by Datacolor Elrepho

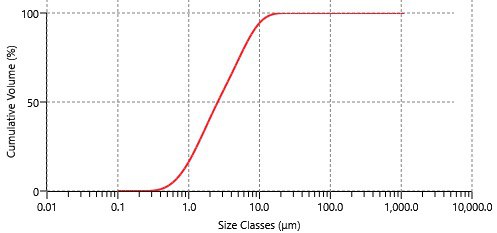

Partical size distribution
d ( 97 ) 12 µ ± 0.2 µ
d ( 50 ) 2.7 µ ± 0.2 µ
≤ 2 µ 38 % ± 2 %
sieve residue ≥ 45 µ 0.01 %
Measured by mastersizer 3000
Paints & Coating
Our grounding calcium carbonate is used as a filler in the paints industry due to its competitive pricing, chemical and physical properties such as whiteness, low oil absorption and enhancement for opacity. Ground calcium carbonate is used as a booster for adhesives and sealants profile.
Adhesives
Calcium carbonate is a relatively soft, insoluble mineral that is widely used to reduce cost and to control shrinkage in adhesive and sealant formulations.
Powder coating
calcium carbonate products can improve the physical and rheological properties of powder coating.
Joint sealant
calcium carbonates increase the resistance and durability of adhesive & sealant joints, and thus the life cycle of the final products.
Paper
Calcium carbonate is commonly used in conjunction with kaolin in papermaking: it can increase the luster, whiteness, opacity, and ink absorption of paper. The shift from acidic to neutral sizing methods in the papermaking industry has greatly increased demand for calcium carbonate. Calcium carbonate is chiefly used as a surface coating in the neutral papermaking process, and is also used as a filler to cut expenses.
Inks
Calcium carbonate activated with a compound coupling agent is used in ink, and can effectively cut costs, increase volume, prevent settling, and improve the ink's luster, transparency, adhesion, and color brightness.
